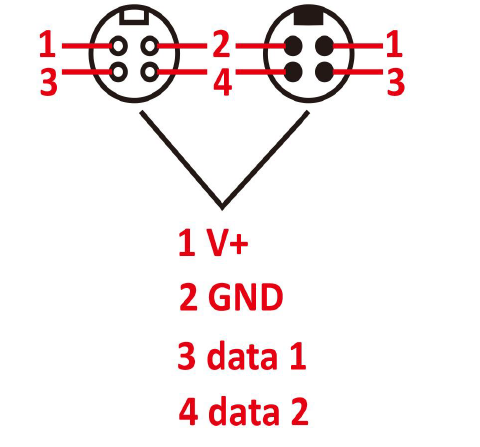

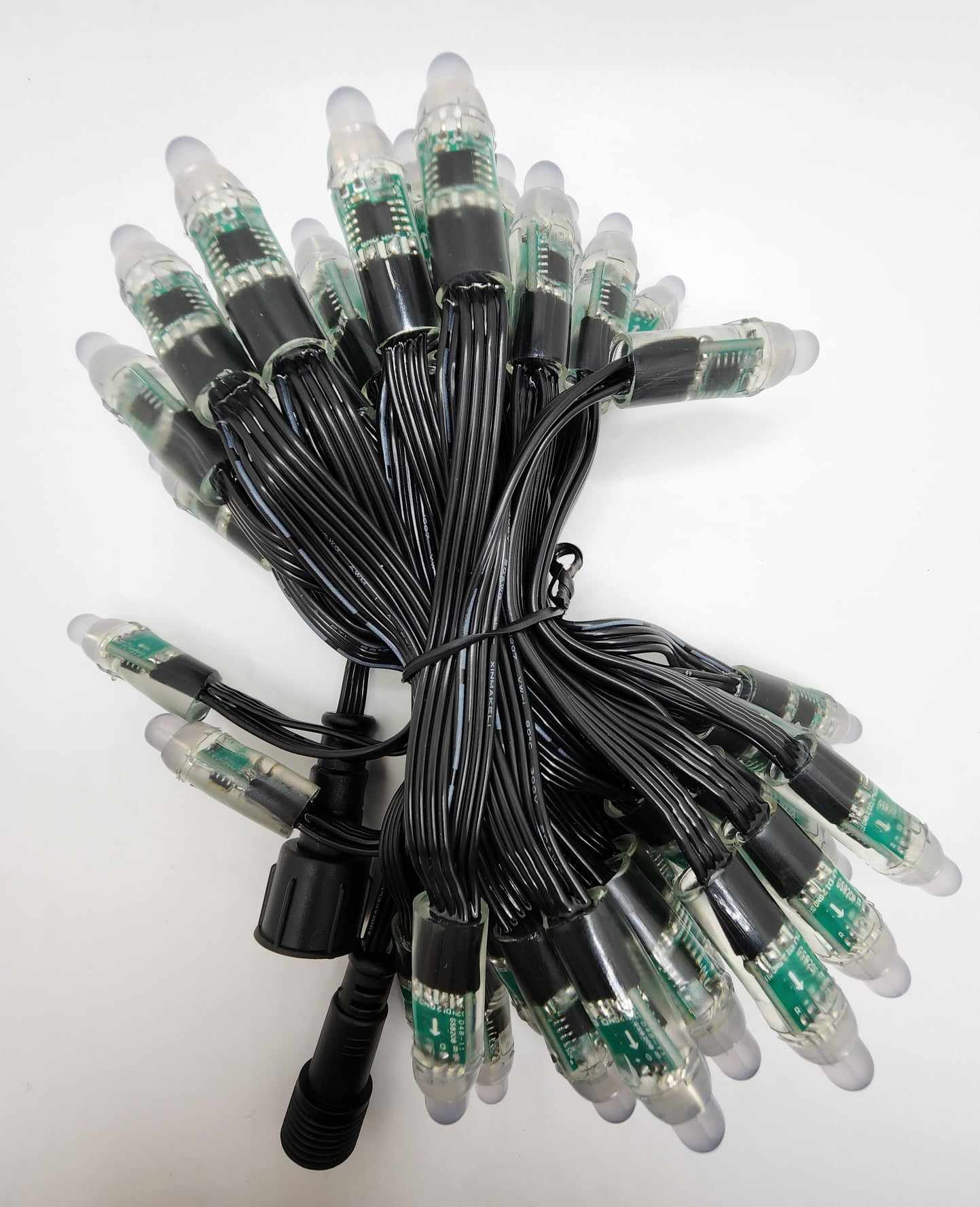

The GS8208 is a type of individually addressable RGB LED pixel, often used in LED strip lighting and other lighting applications. The GS8208 typically follows a specific pixel protocol to control the color and brightness of each individual LED These do work on the WS2811 Protocol. Please note that they are 4 Pin (This includes a double data wire). Data is a primary failure for pixels so this will allow data to continue to flow downstream if (1) the data wire is cut or malfunctions within any given section.
Specs: Voltage: 12V Light Method: BGR Epistar 30000-hour life expectation Power: .06 Watts / Pixel Max Amp: 3.85 Wire Size: 18AWG - 4 Pin IP-68 Suggest running no more than 200 lights before power injection is used. Count 50 or 100 Please select the proper count at checkout These will need a 4-Pin to xConnect or Ray Wu exchanger to run. These can be purchased from us.
