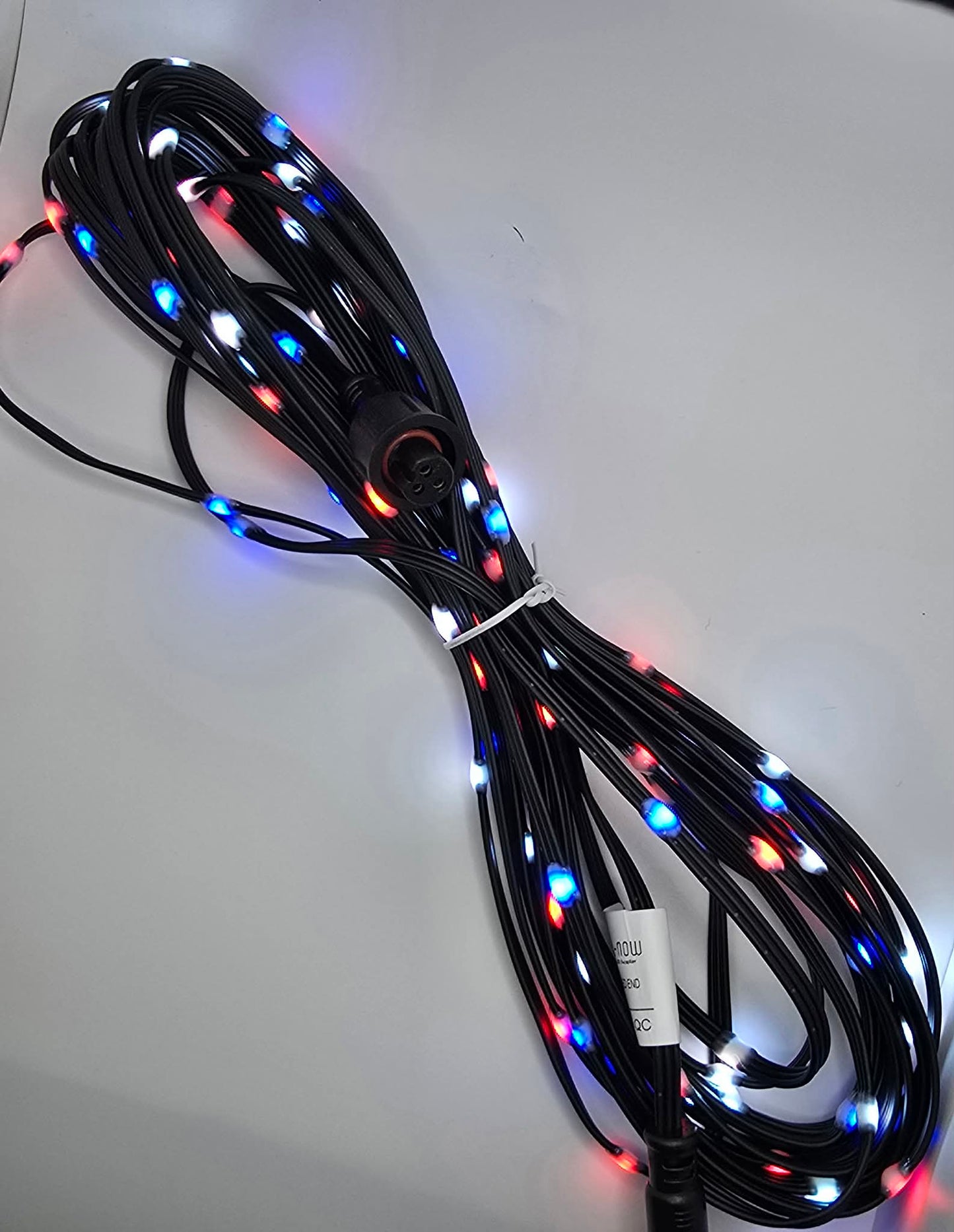

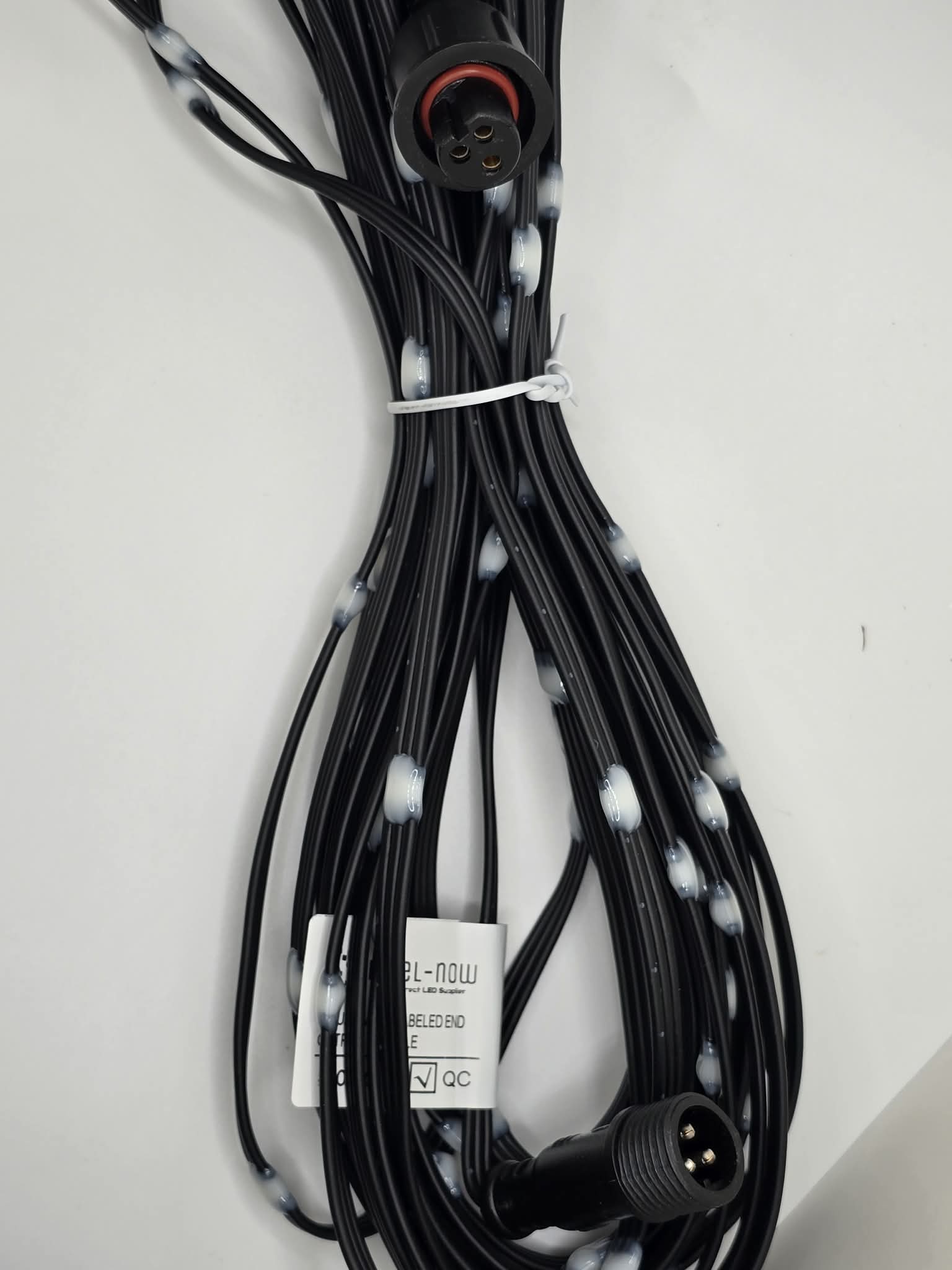

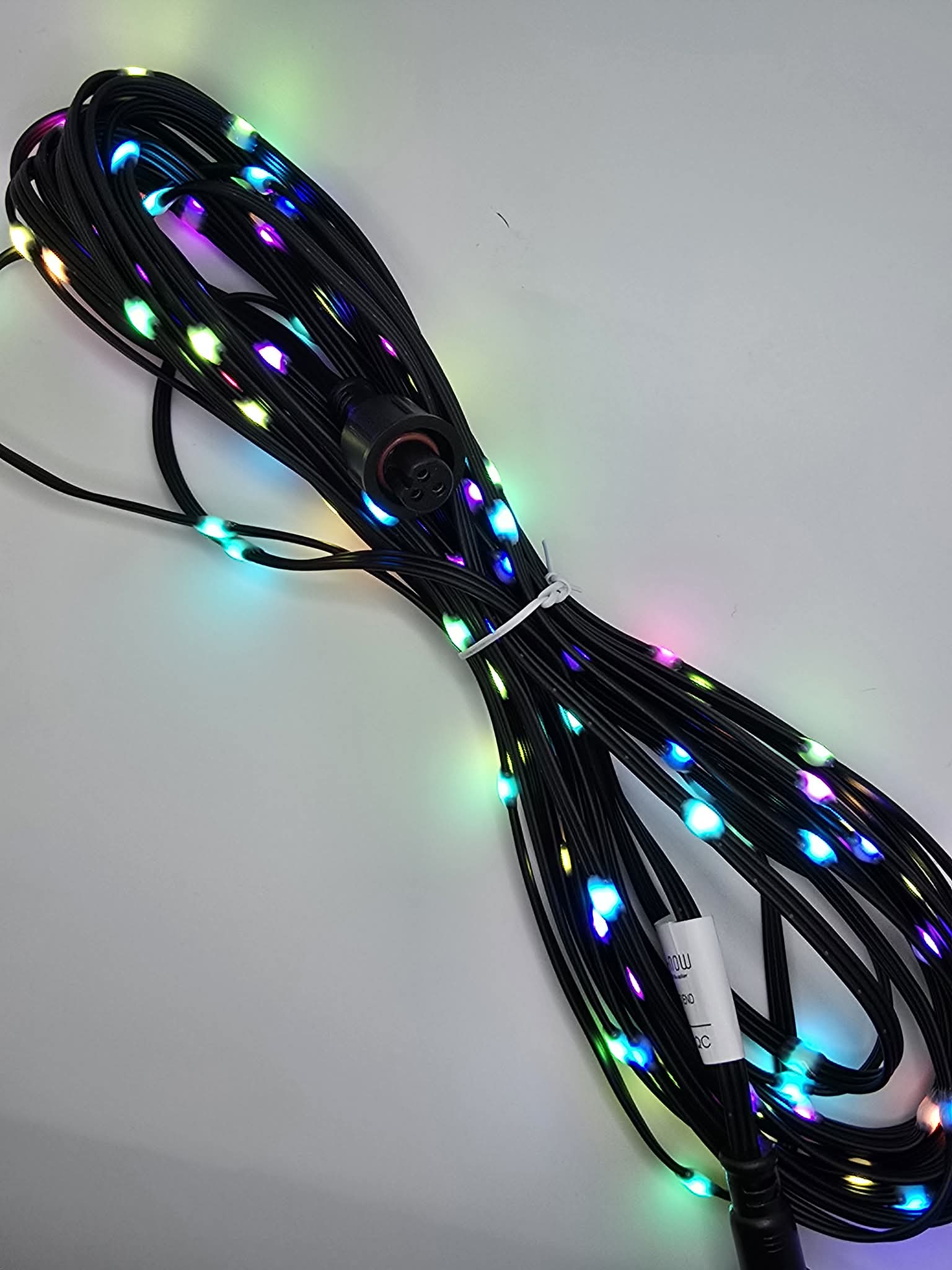

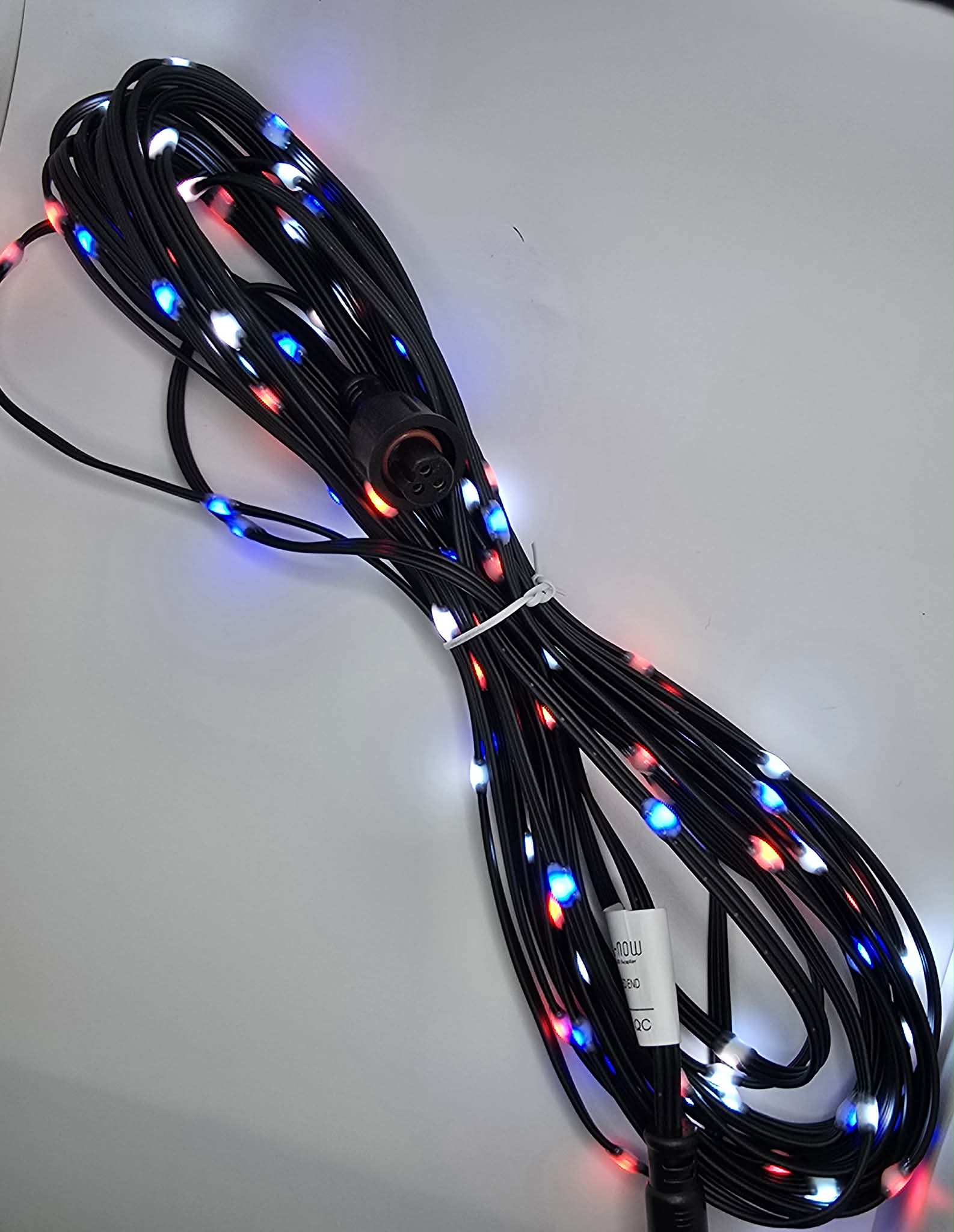

12V Seed Pixel Strands - Improved Insulation

20AWG Seed Pixel Strands – Ready to Plug In and Build

Introducing our 20AWG Seed Pixel Strands - 18AWG insulation. Available in 50 count and 100 count options with your choice of 2-inch or 4-inch spacing. Each strand includes a factory-installed connector, with your choice of Ray Wu or xConnect, so you can get your project wired and running faster. These have been tested with pixel coro props and work great!

Built for performance and designed for outdoor use, these 12V WS2811 seed pixels are ideal for a wide range of display applications while maintaining a clean, compact look.

Product Specifications

• 20AWG wire

• 50 or 100 count strands

• 2" or 4" spacing options

• Prebuilt Ray Wu or xConnect connector

• 12V input

• IP65 weather-resistant

• WS2811 protocol

• 0.1 watt medium-rated power per pixel

• 2-year warranty

Wiring

• Dotted wire = Positive input

• Middle wire = Data

• Outside wire = Negative

Reliable, simple, and ready for your next build.
