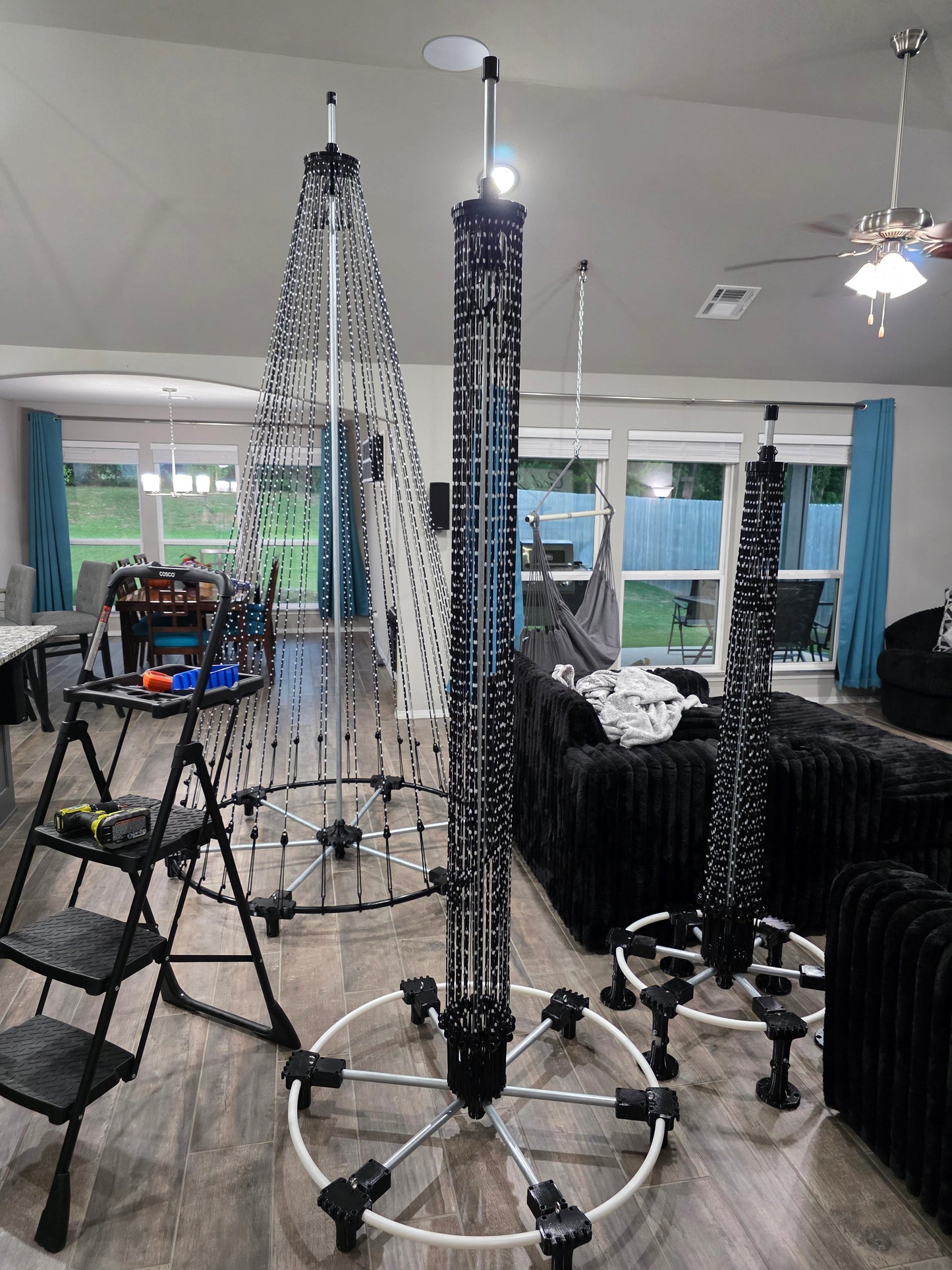

3D Printed Seed Pixel Tree Kit – Easy Setup, Storage & Assembly

Assembly Video

Build your own stunning seed pixel tree using 3D printed components (everything to build the base ring as well as the topper), 3/4" PEX pipe, and 3/4" EMT conduit (not included). Designed for simplicity and durability, this tree features a unique storage-friendly design where the seed pixels remain attached to the pole—making setup, teardown, and storage quick and hassle-free.

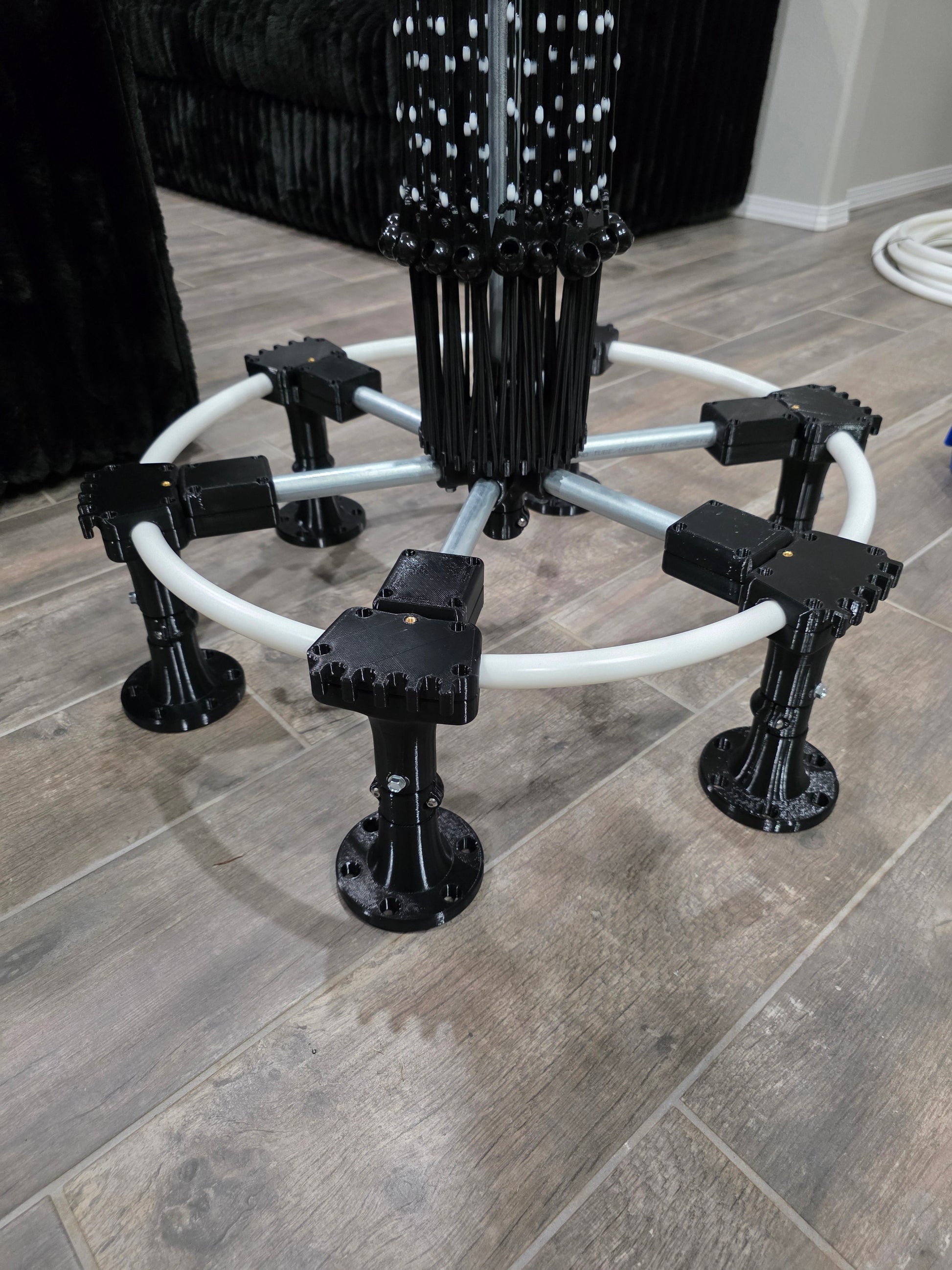

The center pole with attached LEDs slides easily into the sturdy base and secures with two screws during setup. Each tree includes six adjustable feet, each with six 1/2" holes for ground stakes, ensuring stability in outdoor displays.

Only works with 20AWG large 3 wire pixels. Designed for the connectors to be at the top and the LEDs to "alternate nodes" down the string and back up. Also designed for 2" seeds.

Features

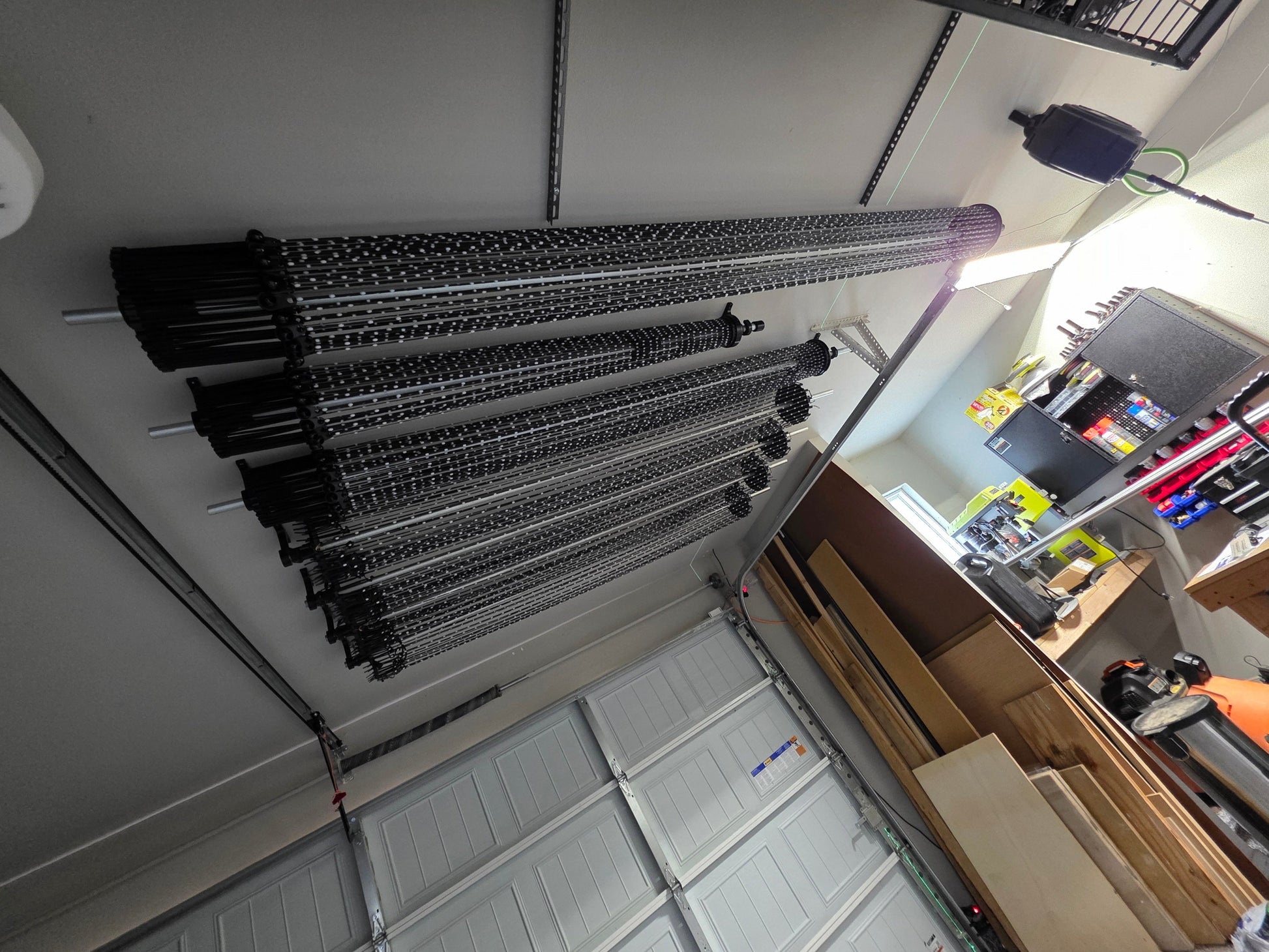

• Fast Setup & Teardown – LEDs stay attached to the pole for effortless storage with ceiling hooks included!

• Secure Base Design – Two screws lock the center pole into place.

• Adjustable Stability – Six feet with stake holes for anchoring.

• Multiple Sizes Available – Choose from 4ft, 6ft, or 8ft tall.

• Durable 3D Printed Parts – Designed for long-lasting seasonal use.

Assembly Requirements

(Not Included)

• 13 × #12 × 1" self-tapping screws

• Conduit:

  • 4ft tree → 6ft center pole | qty 6 - 9" base ring spokes

  • 6ft tree → 8ft center pole | qty 6 - 15" base ring spokes

  • 8ft tree → 10ft center pole | qty 6 - 21" base ring spokes

• 3/4" PEX Pipe:

  • 4ft tree → 75.5"

  • 6ft tree → 113"

  • 8ft tree → 150.75"

• 32 6" Bungee Balls
• Seed Pixels (2" Spacing)

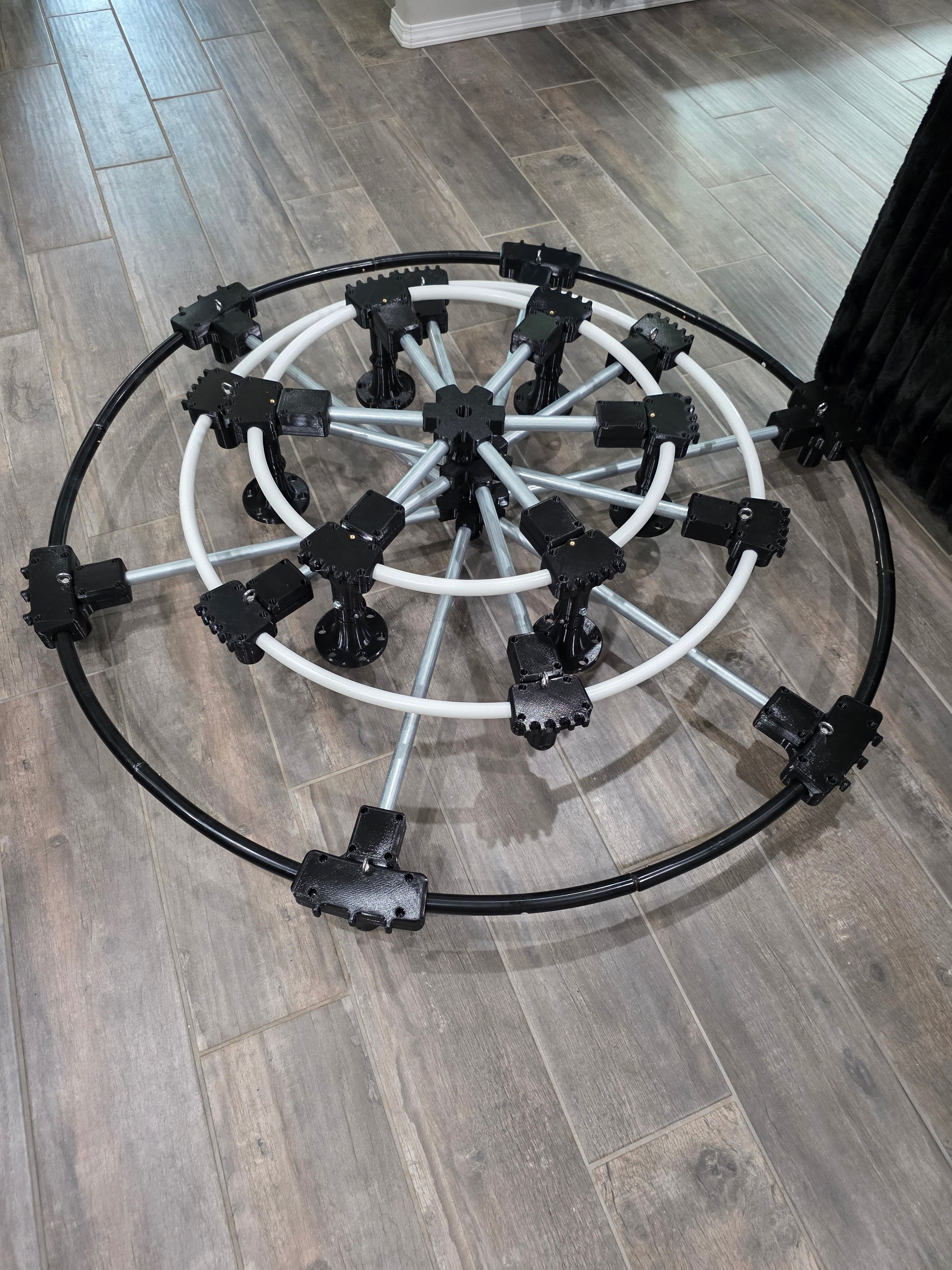

Topper & Base Dimensions

• 4ft Tree → Topper: 4" | Base: 2' diameter | 50 LEDs Tall | 1600 seed pixels total

• 6ft Tree → Topper: 6" | Base: 3' diameter | 75 LEDs Tall | 2400 seed pixels total

• 8ft Tree → Topper: 8" | Base: 4' diameter | 100 LEDs Tall | 3200 seed pixels total

Package Options

1. Printed Parts Only – You supply hardware, 70 M5 threaded inserts, and 70 M5×16mm button head screws.

2. Printed Parts + Hardware – Hardware included, but you install the threaded inserts.

3. Printed Parts + Hardware Installed – All inserts pre-installed; just add conduit, PEX pipe, and assemble.

Note: All conduit, PEX pipe, LEDs, and self-tapping screws are not included. Guy wire mount is also not included as it did not work as anticipated and ended up being useless...
